Dental Chair ZA-208F, with Fifth generation parallel sliding motion compensation chair frame design
German KUKA machine manual automatic assembly (accuracy up to +0.08mm)
The highest position of the Patient chair from the ground: ≥700mm
The lowest position of the Patient chair from the ground: ≤500mm
It only takes 9 seconds for the backrest to reach the working position
-Thickness 1.2mm
-Good rebound resilience
-Wear-resistant,breathable an aging resistant
-Ergonomics design
Movable side box :
-100% pure ASA material Adopt injection molding process, It can be sealed, dust-proof, pollution-proof, easy to clean and keep clean 45 degree movable side box , opposite door is designed for easy maintenance
Detachable and Movable Spittoon:
-90 degree rotary glass ( ceramic opitonal ) spittoon
-Easy for cleaning
-deepenning the design to avoid splashing
Narrow type back of a chair:
-Backrest filled with slow rebound memory sponge, thickness Moderate, lying on your back with the comfort of being wrapped, give patients a relaxed and safe experience.
-The leather cushion on the back is tightly woven with natural protein It’s woven. It’s a whole leather pad.
-Special Comfortable hand feel, can effectively reduce the patient’s back Friction with the seat.
Adjustable Comfort Headrest:
-The adjustable curved headrest is more comfortable than the traditional flat headrest, it’s prevents the head from shaking and can be adjusted from multiple angles.
Metal backrest
-The backrest inside is made of 4mm steel which is solid and stable. The outer layer adopts electrostatic spray paint process which with strong adhesion.

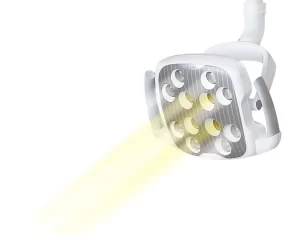

LED Operating Light
-Philips LED light source, Illumination for Operating Light: Low light > 15000Ix < Bright light, infrared sensor switch or touch switch to control stepless dimming. It’s with manual and sensor integration, flexible and agile movement, and easy to locate the required angle of lighting.
Dental Chair ZA-208F with Instrument Tray:
-Three memories
-Big size Stainless steel tray
-The bottom shell of the instrument tray is made of cast aluminum
Four hands operation assistant tray:
-With multi-functional control panel, it is convenient for assistant to use the common functions of dental chair and assist dentists to improve work efficiency.
Cast aluminum light arm：
-Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).
Aluminum Cabinet:
-High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.
Rotatable Armrest
-The armrest can be rotated horizontally which is convenient for patients to lie up and down the chair.

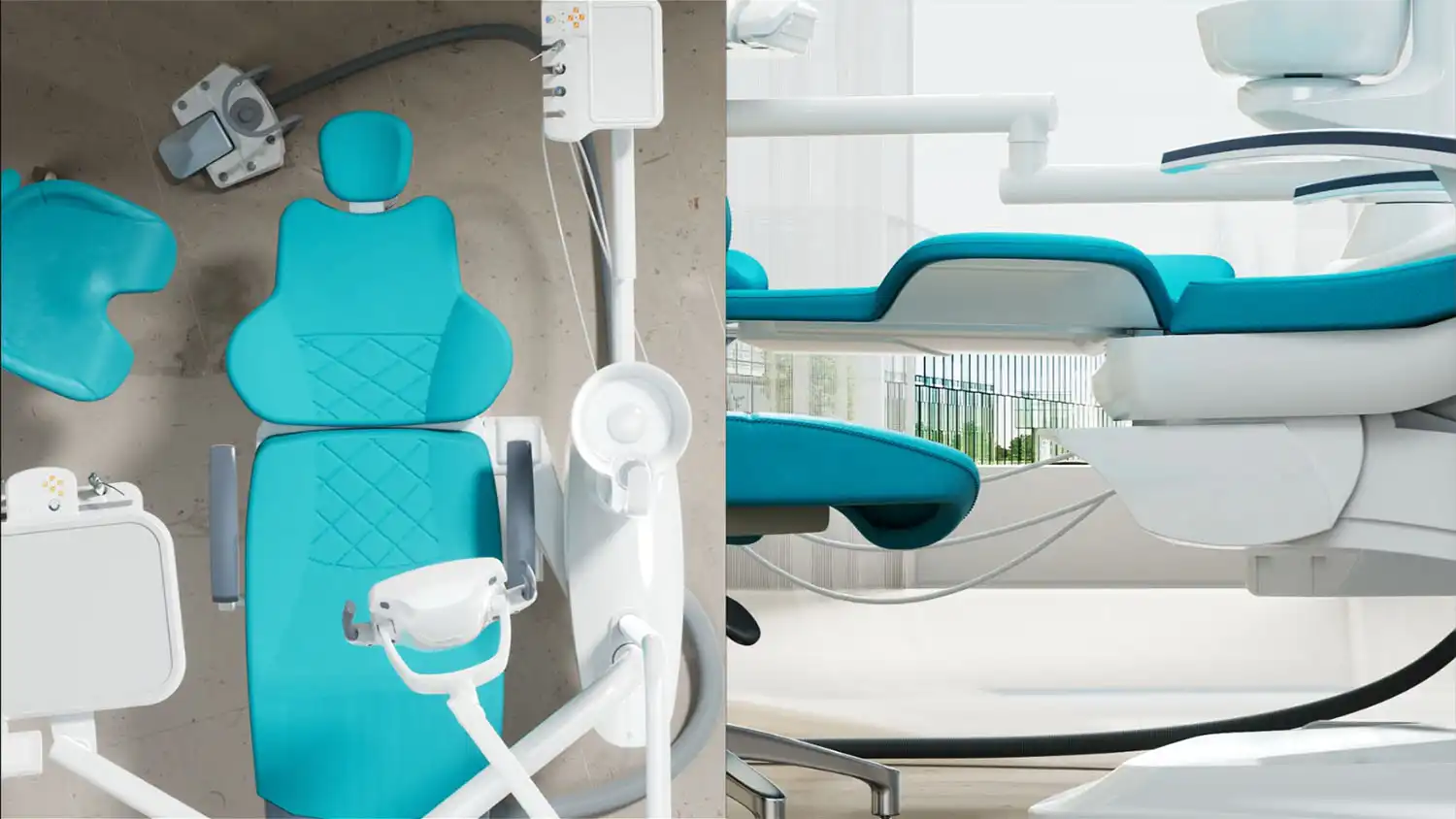

5th genartion integral Chair Frame
– The chair frame is made of 4mm metal cutting by the laser machine. It’s with precise dimensions which is the highest standard in the dental unit industry.
Dental Chair ZA-208F with Junction Box
-Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. It’s improve the stability and durability of the prower.
-With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.
Multifunctional Foot Pedal:
-The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply, operating lamp on/off and handpiece control.
Ultra fine fabric
Ziann selects ultra-fine fabrics and uses craftsmanship tocreate light luxury fashionable dental chairs, giving patientsa comfortable touch and elegant enjoyment
Technical Parameters
| Illumination for Operating Light: | Low light > 15000Ix < Bright light |
| Illumination of the Film Viewer: | ≥2000Ix |
| Color temperature of the Film Viewer | ≥6500K |
| Starting force of the foot switch: | 10 N >starting force <50 N |
| Noise： | <70 dB（A） |
| Wastewater discharge： | >4 L/min |
| Working load of Patient： | 150 kg |
| Load weight of the Instrument Tray: | 5Kg |
| Load weight of Assistant frame : | 3Kg |
| Water Tank: | Capacity800ml&1200ml, pressure 0.25MPa |
| The highest position of the Patient chair from the ground: | ≥700mm |
| The lowest position of the Patient chair from the ground: | ≤500mm |
| Backrest movement range: | 105°- 170° |
| Head rack extension range: | 120mm |
| The biggest backward angle of the seat cushion: | ≤12° |
| Temperature of the constant temperature water heater: | (40±5)℃ |
| Work space: | length≥3000mm/width≥3000mm/height≥2500mm |
